Sleeps 4
-
1 Slides
-
Rear Bath
-
20ft Long
-
3,684 lbs

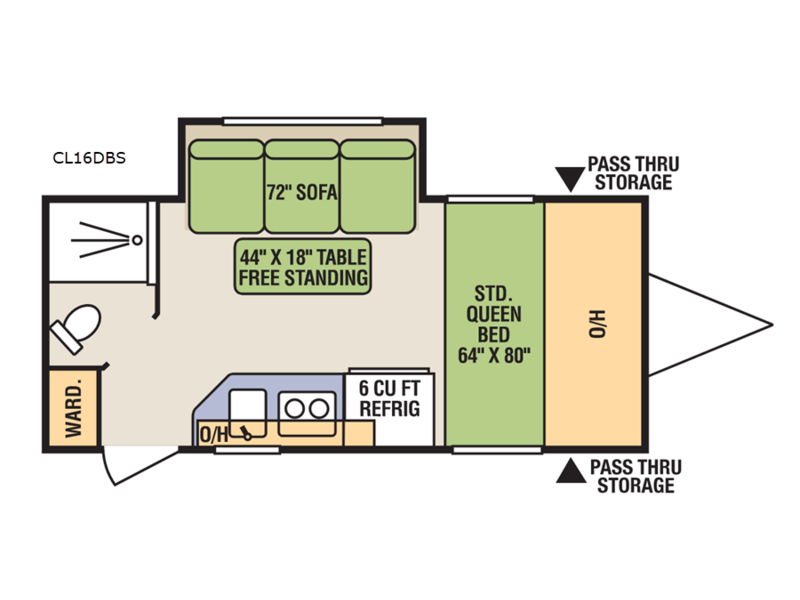

CL 16DBS Floorplan
Specifications
Sleeps | 4 | Slides | 1 |
Length | 20 ft 1 in | Ext Width | 7 ft |
Ext Height | 9 ft 8 in | Hitch Weight | 390 lbs |
GVWR | 5390 lbs | Dry Weight | 3684 lbs |
Cargo Capacity | 1706 lbs | Fresh Water Capacity | 38 gals |
Grey Water Capacity | 32 gals | Black Water Capacity | 28 gals |
Tire Size | 14" | Available Beds | RV Queen |
Refrigerator Size | 6 cu ft | Convection Cooking | Yes |
Cooktop Burners | 2 | Number of Awnings | 2 |
LP Tank Capacity | 20 | Water Heater Capacity | 6 gal |
Water Heater Type | DSI Gas/Electric | AC BTU | 13500 btu |
Awning Info | Std. 10' & Slide Out Topper | Axle Count | 1 |
Number of LP Tanks | 2 | Shower Type | Wet/Bath Shower |
Electrical Service | 30 amp | VIN | 56DTW1620H1100486 |
Description
Enjoy camping at its finest in this LivinLite CampLite travel trailer CL 16DBS. This unit offers a single slide, a rear bath layout, and sleeps four.
As you enter notice the wardrobe immediately inside the door to your left. There is a bathroom straight ahead in the rear right corner that features a shower and toilet.
Along the roadside of the trailer you will find a sofa bed slide out which creates added interior space when it is fully extended. The sofa offers seating during the day and extra sleeping space at night.
The kitchen allows you to easily cook up light meals and snacks, and you don't have to wait to light a fire to make a pot of coffee in the morning. Instead you can quickly put a pot on the stove to perk. There is a single sink for cleaning up, and a refrigerator to keep your perishables cold and fresh.
The queen bed up front provides a great place to get a good night's rest, and you can choose a dinette/bed instead, with an optional fold down bunk above, plus so much more!
Features
- Dual-Pane Euro Windows w/built-in Day/Night Shades/Screens (double-acrylic tinted that open 90 degrees)
- 3 Interior Color Choices, including All-Aluminum Cabinet Door Option
- Trek® Residential Freeze / Crackproof Linoleum
- All-Aluminum Tube Cabinet Structures
- Solid-Surface Countertops
- Audio/Visual Package (incl. AM/FM/IPod stereo system w/speakers, digital TV antenna, TV swivel bracket, cable hookup & 12V/110V receipts)
- (2) Flush-Mount Interior Speakers
- Charging Center w/USB Ports
- Stainless Steel Sink w/High-Rise Faucet
- High-Efficient LED Lights
- 60 x 80 Mattress (floorplan specific)
Appliances
- Convection Microwave (N/A 11FK)
- 6 CU FT Refrigerator
- 2-Burner Flush-Mount Stovetop w/Glass Cooktop Cover
- Vented Range Hood w/Light (not available on all floorplans)
- 6 GAL Gas/Electric DSI Water Heater
- High-Power 12V Vortex Fan
Bath
- Porcelain Foot-Flush Toilet
- All-Aluminum Shower Surround
- Mirrored Medicine Cabinet
Bedroom
- Reversible Residential Quilted Comforter
- Teddy Bear® Bunk Mattress(s)
- Overhead Cabinets
- Large Shirt Closet
- (2) Under-Bed Storage Gas Struts
- Hard Valances
- Dual-Pane Euro Windows w/Built-in Day/Night Shades/Screens (double-acrylic tinted that open 90 degrees)
Exterior/Construction
- NO WOOD = NO ROT!
- 6-Sided Aluminum Superstructure
- 5" Double Aluminum Frame w/3" Tongue Tube Middle Railphotos
- Composite Material throughout (water & mold resistant)
- Laminated Floor – 1 7/8" Thick w/Fiberglass, Block Foam & Azdel (No Wood = No Rot) (R9 insulation)
- Vacuum-Bonded Walls Laminated w/Azdel 3-Tier Glue Process (stronger & more durable)
- .40 Aluminum Siding w/Full Body Automotive Paint (6 color options)
- 6-Sided Block Foam Insulation, incl. Front Radius
- Alpha Superflex® Roof w/12-Year Warranty (more durable, less chalking & streaking)
- Wide-Track Leaf Spring Axles w/MORryde® Suspension
- Auto-Adjusting Brakes w/EasyLube® Axles
- Power Tongue Jack (N/A 11FK)
- Slideout Topper Awning
- Radius Entry Door w/Radius Entry Steps
- Black Tank Flush
- Aluminum Tank Brackets
- Detachable 30 AMP Marine Grade Power Cord
- Radial Tires (sidewall & tread function independent, allows more tire flexibility & ensures more ground contact, gaining more stability & control)
- High-Polished Aluminum Rims
- Gutter w/Downspouts
- Gutters above Slideouts
- Pre-Wired Zamp® Solar
- Cable/Satellite Prep
- (2) Blue LED Lighted Exterior Speakers
- High Efficiency LED Lights
- Hot/Cold Exterior Shower
- Diamond Plate Skirt Metal
- Radius Baggage Doors w/Slam-Latches
- Spare Tire
- 13.5K BTU A/C
Options
- Front Overhead Bunk w/Safety Harness (14DB, 14DBS, 16DBS)
- 24" LED TV
- Trifold Sofa IPO 2-Person Dinette (16TBS)
- Tip-Out Bunk (11FK)
- Dinette IPO Queen Bed (16DBS, 14DB)
- Dinette IPO Jackknife Sofa Bed (16DBS, 21RBS)
- Off-Road Package w/All-Terrain Tires
- Fantastic Fan (bath unless specified)
- Dual 30# LP Tanks IPO Standard 20# Tanks
- Power Awning w/LED Lighting
- RVIA/QAI/Canadian Standards
- RVIA Seal
- State Seal
XL Living Package
- Includes 13.5K BTU A/C, High-Power Vortex Vents (US only), Tank Monitor System, Black Tank Flush, Aluminum Framed Cabinets w/Decorative Wood Cabinet Fronts & Doors, Vinyl Flooring, Dual LP Tanks, Lightweight European Double-Acrylic Glazed Windows w/Built-In Day/Night Shades, Upgraded Leatherette Seating & Cushions, Solid-Surface Countertops, Swing-Away Grab Handle, Double Step Entry
Truck Campers
Livingroom/Kitchen
- All-Aluminum Tube Cabinet Structures
- Dual-Pane Euro Windows (double-acrylic tinted that open 90 degrees w/built-in day shade)
- Solid-Surface Countertops
- Bluetooth DVD/CD/MP3 Stereo w/USB Charger
- (2) Flush-Mount Interior Speakers
- Charging Center w/USB Ports
- Trek® Residential Freeze/Crack-proof Linoleum
- (3) Interior Color Choices, Incl. All-Aluminum
- Stainless Steel Sink w/High-Rise Faucet
- Flush-Mount Glass Cooktop Cover
- High-Efficient LED Lights
- 60 x 80 Mattress (F/P specific)
Appliances
- Convection Microwave
- LP Refrigerator
- 2-Burner Stovetop
- Vented Range Hood w/Light (N/A on some floorplans)
- 6 GAL LP/Electric DSI Water Heater
- High-Power 12V Vortex Fan
- LP Furnace
Bath
- All-Aluminum Shower Surround
- Mirrored Medicine Cabinet
Bedroom
- Overhead Cabinets
- Large Shirt Closet
- Hard Valances
- Nightshades
Exterior/Construction
- 6-Sided Aluminum Super Structure
- Composite Material Throughout (water & mold resistant)
- 1 7/8" Laminated Floor w/F/G Block Foam & Azdel (No Wood = No Rot)
- Vacuum Bonded Walls Laminated w/Azdel, 3-Tier Glue Process (stronger, more durable)
- .40 Aluminum Siding w/Full-body Automotive Paint (5 color choices)
- 6-Sided Block Foam Insulation, incl. Front Radius
- Alpha Superflex® Roof w/12-Year Limited Warranty (more durable, less chalking & streaking)
- Automotive-Style Rear Bumper (where applicable)
- Enclosed & Heated Underbelly
- Radius Entry Door
- Black Tank Flush
- Aluminum Tank Brackets
- 30 AMP Detachable Marine-Grade Power Cord
- Auxiliary Battery Box
- Pre-Wired Zamp® Solar
- Cable/Satellite Prep
- (2) Blue LED Lighted Exterior Speakers
- High Efficiency LED Lights
- Outside Shower w/Hot/Cold Water (where applicable)
- Diamond Plate Skirt Metal
- Baggage Doors w/Magnetic Catches
- Pre-Wired for Electric Jacks (all models)
Options
- Aluminum Package (leather & cabinetry)
- 11 BTU Coleman® Mach 1 A/C (runs on 2KW generator)
- External LP Hookup
- Electric Jacks (STD on 8.4S, 10.0 & 11S)
- Ladder
- Roof Rack
- Jackknife Sofa IPO Dinette (11S & 8.4S only)
- Fantastic Hi-Power Vent
- Side Box Awning
- Rear Awning
- Dually Brackets
- 12V Tank Heaters
- Canadian Standards
- RVIA Seal
- State Seal
XL Living Package
- Includes High-Power Vortex Vents (US only), Tank Monitor System, Audio Package w/24" TV, Decorative Wood Cabinet Fronts & Doors, Vinyl Flooring, Audio Visual Prep (incl. digital TV antenna, INT/EXT cable hookups, 12V/110 outlets by swivel TV bracket), INT/EXT LED 12V Light Package
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
